Cention Export JSONAPI

To use Cention Contact Center export API, a JSON Web Token (JWT) with ‘Access to export API’ claim attached is needed.

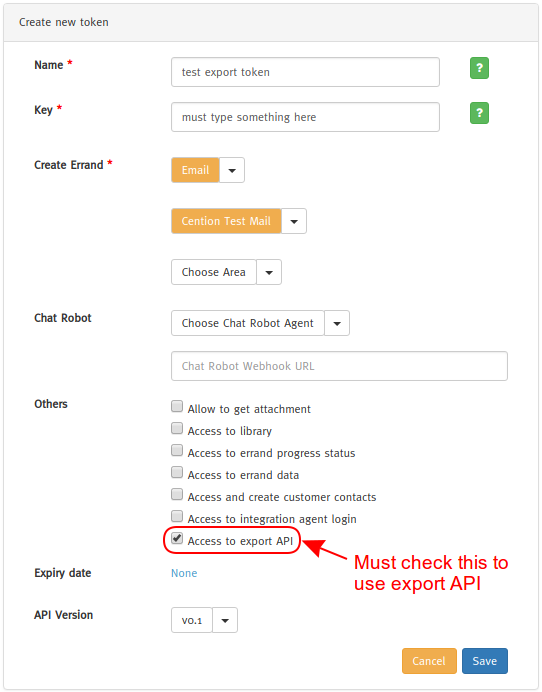

To create JWT go to Cention server → Administration tab → API → Access Tokens.
Check (tick) ‘‘Access to export API’ from Others.
Make sure to fill up the Key field else Save button will not be activated.
Screenshot:

The API follows JSONAPI specification: http://jsonapi.org/ . Following is some of the specification that must follow:

http://jsonapi.org/format/#content-negotiation-clients
Put the token in header: Authorization: Bearer <token>. For example Authorization: Bearer eyJhbGci...<snip>...yu5CSpyHI
HTTP request header Content-Type must be: application/vnd.api+json

Trigger Export Generation

Use HTTP POST with endpoint: https://<cention api domain>/s/<workspace>/capi/json/c3_trigger_exports to trigger a preset export. If the name of your Cention workspace is “demo” and the cention api domain is apid.cention.com then the endpoint would be: https://apid.cention.com/s/demo/capi/json/c3_trigger_exports
Sample HTTP POST request body data format for trigger export:

{
  "data": {
    "type": "c3_trigger_exports",
    "attributes": {
      "use_closure_date": true,
      "errand_from_date": "2019/01/01",
      "errand_to_date": "2019/01/30"
    },
    "relationships": {
      "export": {
        "data": {
            "type": "c3_exports",
            "id": "316"
        }
      }
    }
  }
}

Sample HTTP POST response data format for trigger export (include id field):

{
  "data": {
    "type": "c3_trigger_exports",
    "id": "3",
    "attributes": {
      "c3_id": 3,
      "use_closure_date": true,
      "errand_from_date": "2019/01/01",
      "errand_to_date": "2019/01/30",
      "content": {
        "errand_id": 1,
        "from_address": "test@cention.se",
        "to_address": "test1@cention.se",
        "subject": "subject",
        "question": "question",
        "answer": "answer",
        "errand_notes": "notes",
        "timestamp_arrived": "",
        "timestamp_opened": "",
        "timestamp_answered": "",
        "timestamp_closed": ""
      }
    }
  }
}

Data.relationships

Field	Type	Description
export	Array of Object	JSONAPI formatted object which represent the preset-ed export to be triggered.

Data.relationships.export

Field	Type	Description
data	Array of Object	JSONAPI formatted object which represent the preset-ed export to be triggered.

Data.relationships.export.data

Field	Type	Description
type	String	Export type.
id	String	Export ID from Cention application.

Data.attributes

Field	Type	Description
c3_id	Integer	Generated export content’s database ID.
use_closure_date	Boolean	If true the generated content base on errand’s closure date instead of arrival date.
errand_from_date	String	If set export will search errand from this date, format “2019/01/01”.
errand_to_date	String	If set export will search errand until this date, format “2019/01/01”.
content	Array of Object	The content of generated data of the export.

Data.attributes.content

Field	Type	Description
errand_id	String	Errand identification number.
from_address	String	Errand from address.
to_address	String	Errand to address.
subject	String	Errand subject.
question	String	Errand question message.
answer	String	Errand answer message.
errand_notes	String	Errand note message.
timestamp_arrived	String	Errand arrival time.
timestamp_opened	String	Errand open time.
timestamp_answered	String	Errand answer time.
timestamp_closed	String	Errand closing time.
agent_id	Integer	Errand assigned agent id.
agent_name	String	Errand assigned agent name.
area_id	Integer	Errand container area id.
area_name	String	Errand container area name.
tag_names	String	Errand tags name.
client_id	Integer	Errand sender id.
priority	String	Errand priority level.
satisfaction_meter_answer_1	Integer	Errand feedback level 1.
satisfaction_meter_answer_2	Integer	Errand feedback level 2.
satisfaction_meter_answer_3	Integer	Errand feedback level 3.
satisfaction_meter_answer_4	Integer	Errand feedback level 4.
satisfaction_meter_answer_5	Integer	Errand feedback level 5.
channel	String	Errand source name.
area_external_id	String	External id for Area.

References:

JSONAPI specification.
